VSD Volumetric Servo Depositor

  • Front view of a Volumetric Servo Depositor without background

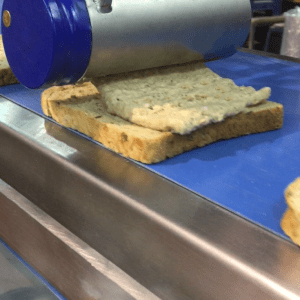

  • Close-up of a Volumetric Sauce Depositor (VSD) sheeting a tuna mix evenly onto a slice of bread.

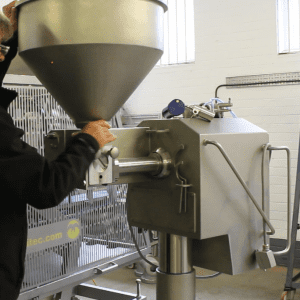

  • Operator manually dismantling a Volumetric Sauce Depositor (VSD) for cleaning or maintenance.

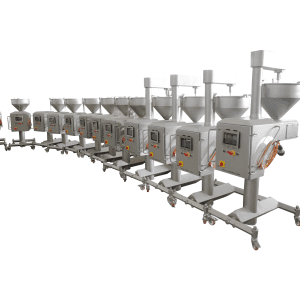

  • Multiple Volumetric Sauce Depositors (VSDs) arranged in a row

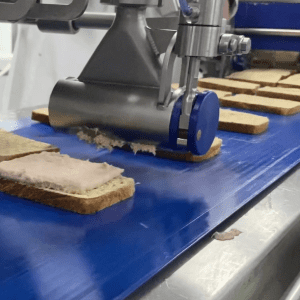

  • Close-up of a Volumetric Sauce Depositor (VSD) sheeting a tuna mix evenly onto a slice of bread.

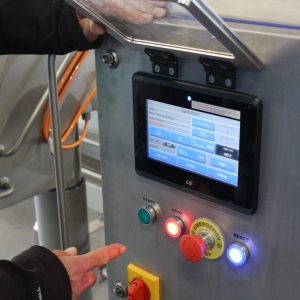

  • VSD screen

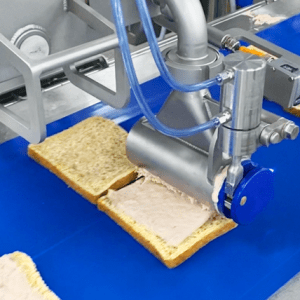

  • Close-up of a Volumetric Sauce Depositor (VSD) sheeting a tuna mix evenly onto a slice of bread.

Description

The Millitec VSD Servo Depositor is a fully mobile, energy-efficient solution for precise product depositing in high-speed production environments.
With touchscreen control, full recipe handling, and rapid changeover parts, it offers maximum flexibility and performance.

Form an automated line: HPL Indexing Conveyor, DPL Diffusion Production Line, SPC Sandwich Production Conveyor

Two volumetric servo depositors operating, evenly sheeting fillings onto bread slices on a conveyor.
CONSISTENT
It delivers remarkable depositing accuracy, adjustable to 0.1g, ensuring consistent and precise deposit weights.
EFFICIENT
The depositor can deliver 100 operations per minute - direct depositing, 60 operations per minute - sheeting.
HYGIENIC
Rapid setup, strip down and cleaning times. Constructed from stainless steel 304 and 316. Eliminate dirty contaminated air entering the production environment.
Download Product Brochure

Other key features

user-friendly
Touch screen control and full recipe handling.
Versatile
Particulate handling up to 50mm.
Adjustable
Deposit weight, density, delay, time, and suck back are all adjustable.
Various Depositor Head
Fan tail, Spreader, Mayo, Straight tube, Pressed tube, Quickshot
energy efficient
Significant energy savings compared to pneumatic-operated depositors

Other Videos

Specification

Technical drawing of Millitec Volumetric Servo Depositor showing front and side views with dimensions – energy-efficient, servo-operated depositor for high-precision food applications

DIMENSIONS

  • Overall Height: 1585.5 mm
  • Working Height: 1087mm +/- 200mm
  • Overall Length: 1093.1 mm
  • Overall Width: 673 mm

PRODUCT SIZE

  • MAX Sheeting Slot Length: 100 mm
  • MAX Sheeting Slot Width: 8 mm
Download Full Technical Brochure
